GENERAL SPECIFICATIONS Impedance 2 Ohm per Channel Channels 2 Channel Rated RMS Power at 14.0 V at 2 Ohm 2x 1000 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 2x 660 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 1x 2000 Watts RMS Average Efficiency 90% Operating Voltage 8 to 16 Volts Musical Current Draw 89 A Minimal Power Wire Input (OFC) 4 Gauge wires Built-in Crossover Fixed HPF & LPF at 80 Hz Minimal Speaker Wire Output 12 Gauge Frequency Response(-3dB) 10 – 22,000 Hz Min. Input Sensitivity for Max. Output 0.2 to 4v Signal Input RCA Cables Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Mini Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 8.50″ x 5.90″ x 2.60″ Weight 3.95 Lbs

Leer Más Menos

GENERAL SPECIFICATIONS Impedance 1 Ohm Channels 1 Channel Rated RMS Power at 14.0 V at 1 Ohm 1x 2600 Watts RMS Rated RMS Power at 14.0 V at 2 Ohm 1x 1850 Watts RMS Average Efficiency 84% Operating Voltage 8 to 16 Volts Musical Current Draw 149 A Minimal Power Wire Input (OFC) 4 Gauge wires Protection Fuse or Circuit Breaker 150 Amps Built-in Crossover Variable HPF 5Hz – 80Hz & LPF 50Hz – 1kHz Variable Gain Bass Boost at 50Hz 0 to +12dB Minimal Speaker Wire Output 12 Gauge

Leer Más Menos

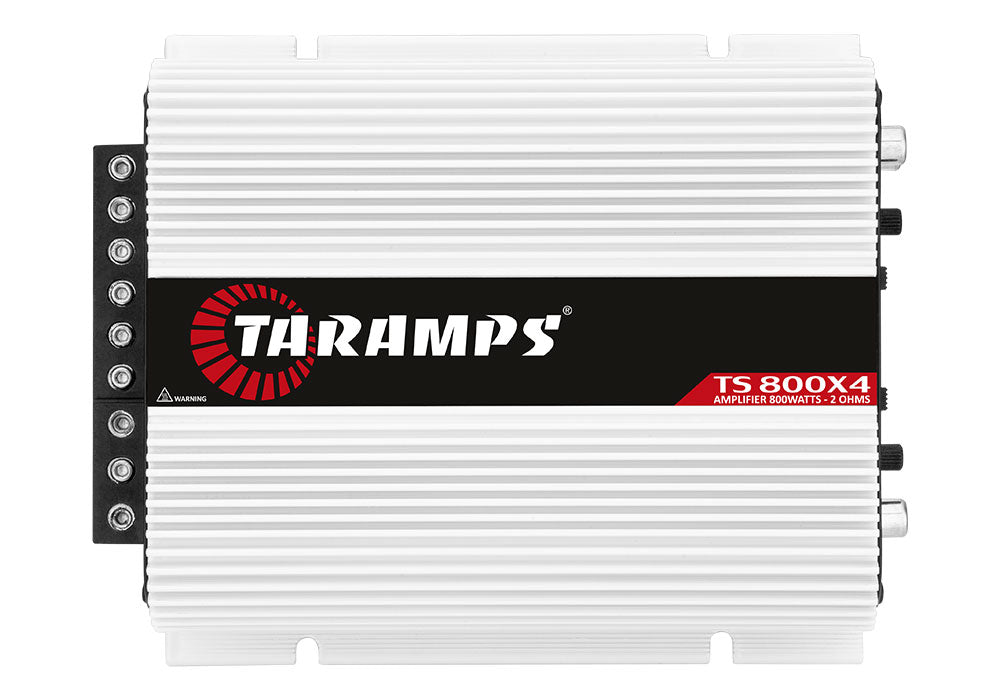

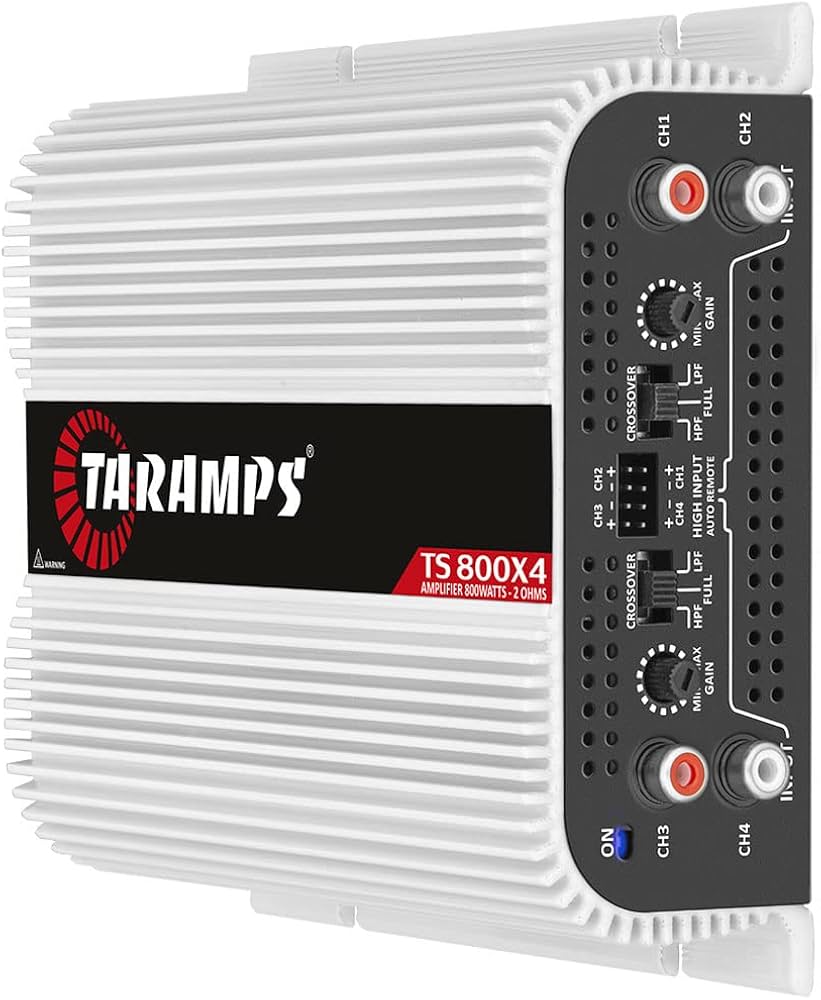

GENERAL SPECIFICATIONS Impedance 2 Ohm Channels 4 Channel Rated RMS Power at 14.0 V at 2 Ohm 4x 310 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 4x 160 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 600 Watts RMS Average Efficiency 84% Operating Voltage 9 to 15 Volts Musical Current Draw 55 A Minimal Power Wire Input (OFC) 4 Gauge wires Built-in Crossover Fixed HPF & LPF at 90 Hz Minimal Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 24,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 2 Pair RCA Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 7.90″ x 8.42″ x 2.65″ Weight 4.50 Lbs

Leer Más Menos

GENERAL SPECIFICATIONS Impedance 2 Ohm or 1 Ohm Channels 1 Channel Rated RMS Power at 14.0 V at 2 Ohm 2000 Watts Rated RMS Power at 14.0 V at 4 Ohms 1500 Watts Average Efficiency 81% Operating Voltage 9 to 16 Volts Musical Current Draw 105 A Minimum Power Wire Input (OFC) 4 Gauge Protection Fuse or Circuit Breaker 150 Amps Minimum Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 20,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 1 Pair RCA Signal to Noise >90 dB Protection System Low & High Supply Voltage / Shortage on Output / Low Impedance on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions (W x D x H) 7.40″ x 8.66″ x 3.00″ Weight 4.80 Lbs

Leer Más Menos

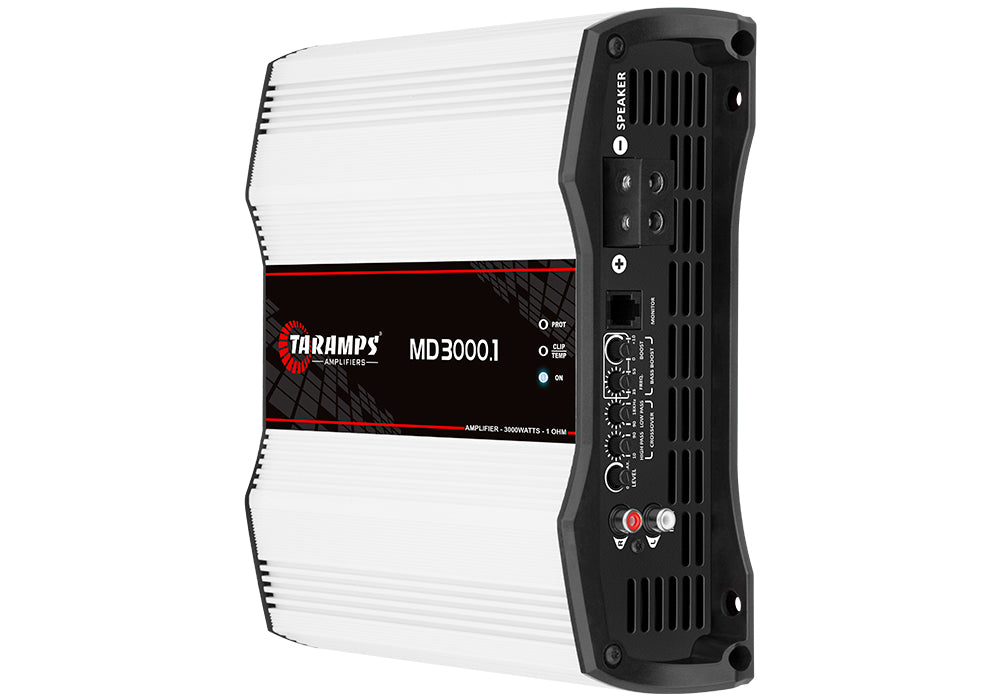

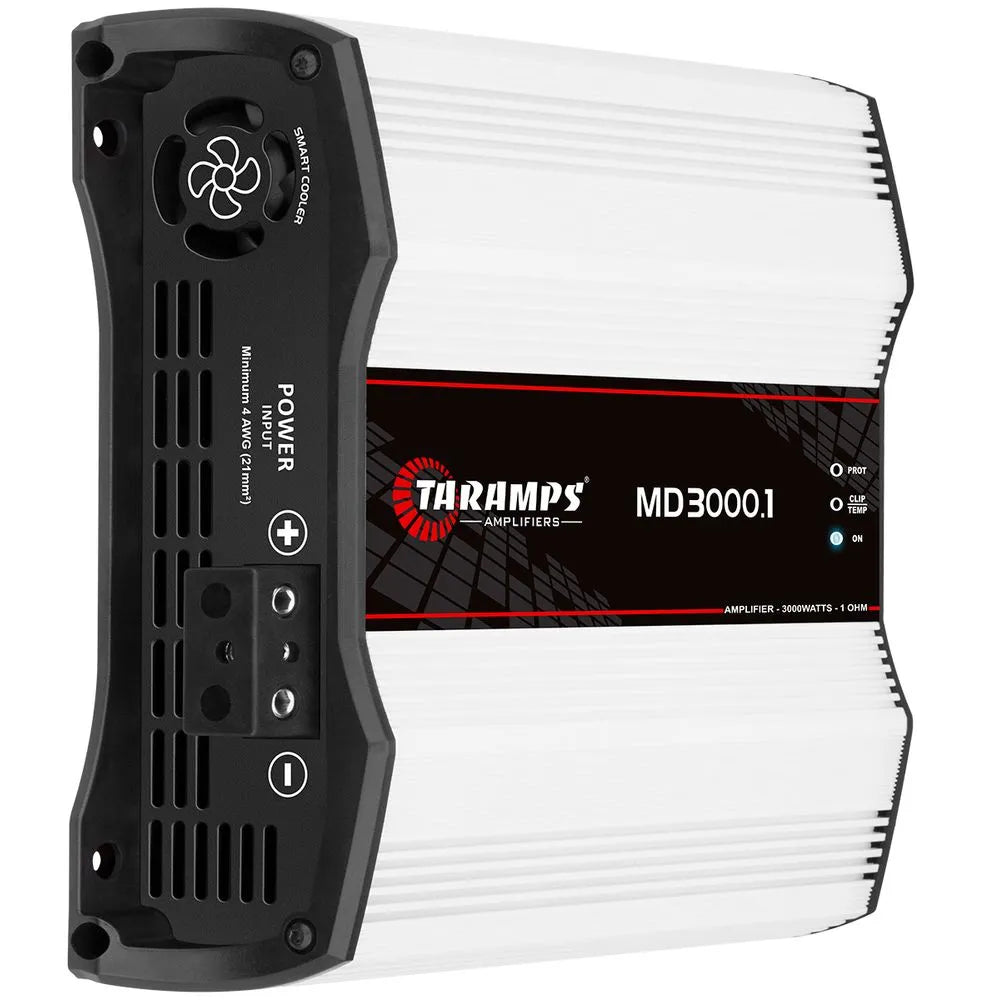

GENERAL SPECIFICATIONS Impedance 1 Ohm or 2 Ohm Channels 1 Channel Rated RMS Power at 14.0 V at 1 Ohm 3000 Watts Rated RMS Power at 14.0 V at 2 Ohms 2100 Watts Average Efficiency 76% Operating Voltage 9 to 16 Volts Musical Current Draw 155 A Minimum Power Wire Input (OFC) 4 Gauge Protection Fuse or Circuit Breaker 150 Amps Minimum Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 20,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 1 Pair RCA Signal to Noise >90 dB Protection System Low & High Supply Voltage / Shortage on Output / Low Impedance on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( W x D x H ) 7.30″ x 8.66″ x 3.00″ Weight 5.10 Lbs

Leer Más Menos

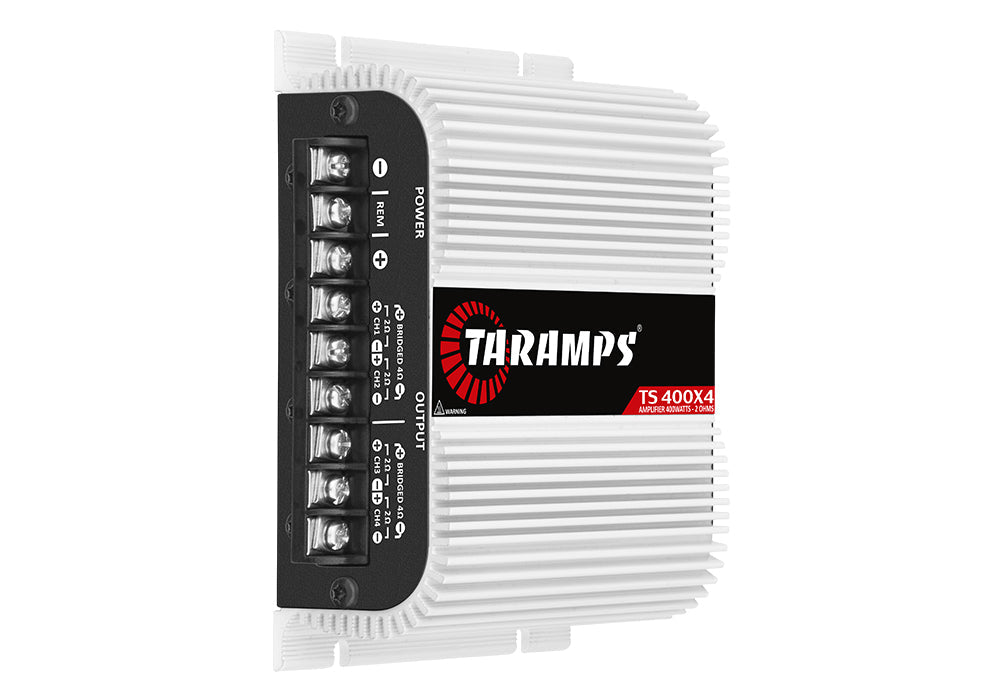

GENERAL SPECIFICATIONS Impedance 2 Ohm Channels 4 Channel Rated RMS Power at 14.0 V at 2 Ohm 4x 100 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 4x 70 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 200 Watts RMS Average Efficiency 80% Operating Voltage 9 to 15 Volts Musical Current Draw 45 A Minimal Power Wire Input (OFC) 8 Gauge wires Built-in Crossover Fixed HPF & LPF at 90 Hz Minimal Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 25,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 2 Pair RCA Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 4.00″ x 5.40″ x 2.00″ Weight 1.18 Lbs

Leer Más Menos

GENERAL SPECIFICATIONS Impedance 2 Ohm Channels 4 Channel Rated RMS Power at 14.0 V at 2 Ohm 4x 220 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 4x 140 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 450 Watts RMS Average Efficiency 82% Operating Voltage 9 to 15 Volts Musical Current Draw 45 A Minimal Power Wire Input (OFC) 4 Gauge wires Built-in Crossover Fixed HPF & LPF at 90 Hz Minimal Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 25,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 2 Pair RCA Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 7.90″ x 8.00″ x 2.65″ Weight 3.80 Lbs

Leer Más Menos

Número de Canales 1 Potencia RMS 12.000W Potencia RMS a 1 Ohms 12.6V 12.000W Potencia RMS a 2 Ohms 12.6V 7.120W Potência RMS em 1 Ohm 14,4V 12.800W Potência RMS em 2 Ohm 14,4V 8.510W Tensión de alimentación 9V ~ 16V DC Respuesta en frecuencia 5Hz ~ 7KHz @ 1 Ohm Crossover Low Pass 90Hz ~ 7KHz Crossover High Pass 5Hz ~ 90Hz Relación Señal / Ruido >90dB Sensibilidad de entrada 200mV

Leer Más Menos

Número de Canales 1 Potencia RMS 3.000W Potencia RMS a 2 Ohms 12.6V 3.000W Potencia RMS a 4 Ohms 12.6V 2.000W Potência RMS em 2 Ohm 14,4V 3.700W Potência RMS em 4 Ohm 14,4V 2.500W Tensión de alimentación 9V ~16V DC Respuesta en frecuencia 10Hz ~ 20KHz @ -3dB Crossover Low Pass 90Hz ~20KHz Crossover High Pass 10Hz ~700Hz Relación Señal / Ruido >90dB Sensibilidad de entrada 200mV

Leer Más Menos

Número de Canales 1 Potencia RMS 3000W RMS Potencia RMS a 2 Ohms 12.6V 3000W RMS Potencia RMS a 4 Ohms 12.6V 1700W RMS Potência RMS em 2 Ohm 14,4V 3900W RMS Potência RMS em 4 Ohm 14,4V 2200W RMS Tensión de alimentación 9V ~ 16V DC Respuesta en frecuencia 10Hz ~ 22KHz Crossover Low Pass 90Hz ~ 22KHz Crossover High Pass 10Hz ~ 90Hz Relación Señal / Ruido >90dB Sensibilidad de entrada 200mV

Leer Más Menos

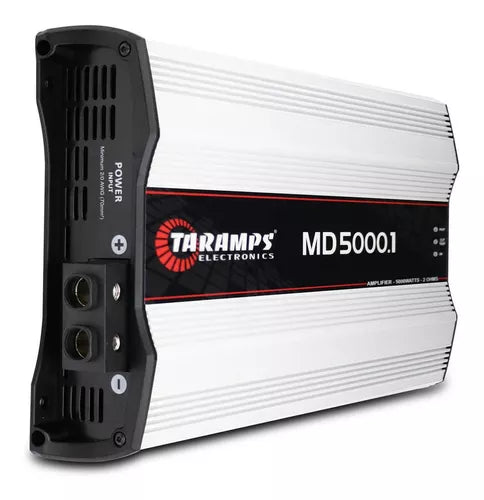

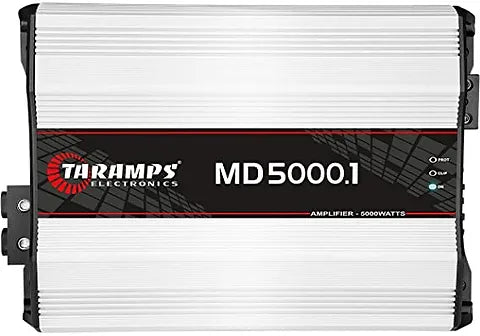

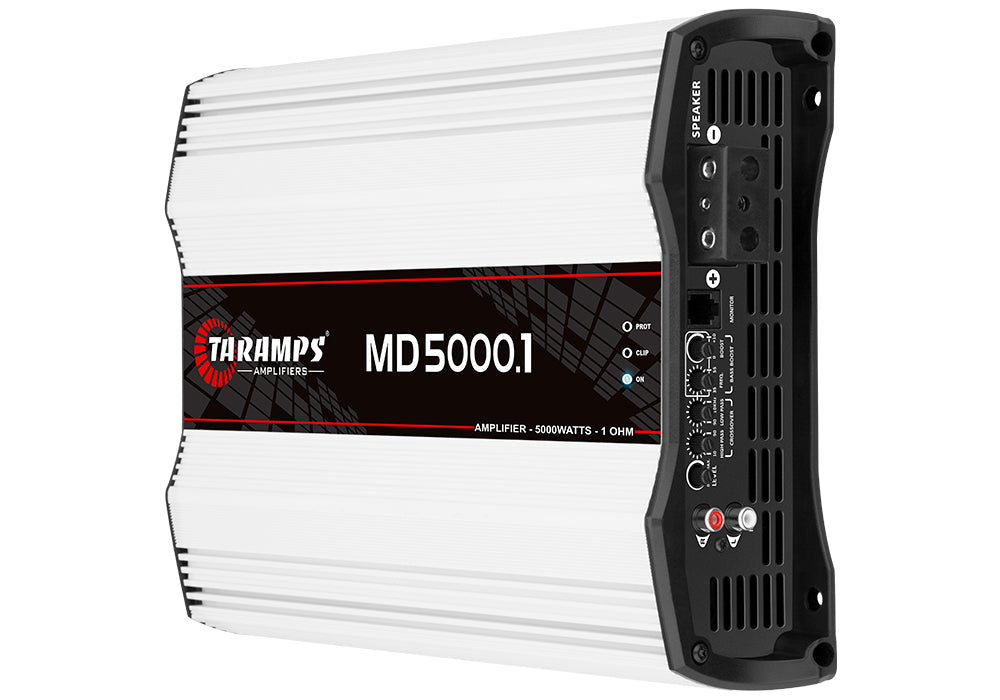

Número de Canales 1 Potencia RMS 5000W RMS Potencia RMS a 1 Ohms 12.6V 5000W RMS Potencia RMS a 2 Ohms 12.6V 2800W RMS Potência RMS em 1 Ohm 14,4V 5300W RMS Potência RMS em 2 Ohm 14,4V 3300W RMS Respuesta en frecuencia 10Hz ~ 12KHz Crossover Low Pass 90Hz ~ 12KHz Crossover High Pass 10Hz ~ 90Hz Relación Señal / Ruido >90dB Sensibilidad de entrada 200mV

Leer Más Menos

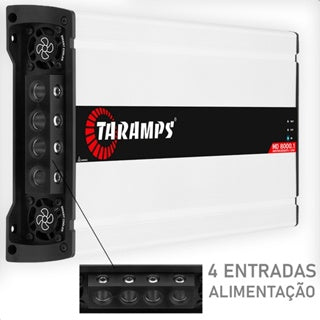

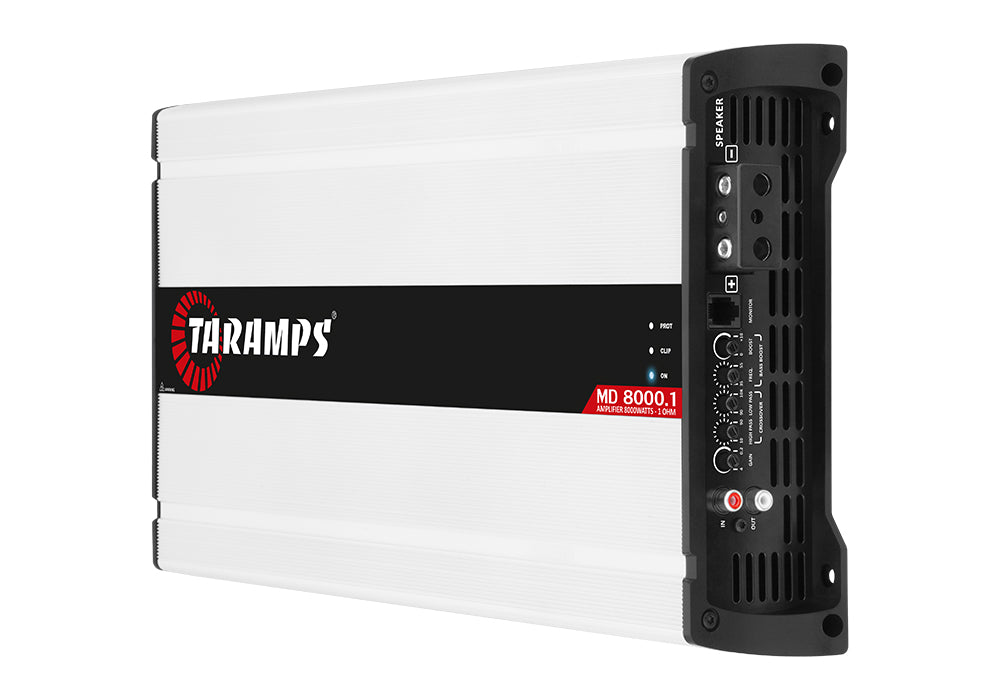

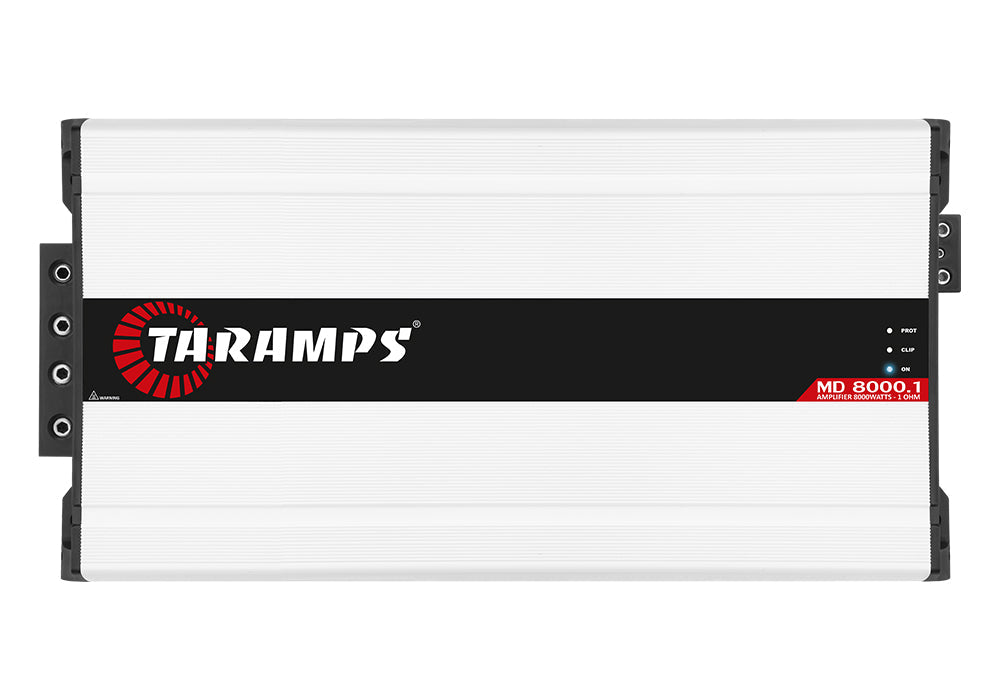

Número de Canales 1 Potencia RMS 8000W RMS Potencia RMS a 2 Ohms 12.6V 8000W RMS Potencia RMS a 4 Ohms 12.6V 4200W RMS Potência RMS em 2 Ohm 14,4V 8700W RMS Potência RMS em 4 Ohm 14,4V 4400W RMS Tensión de alimentación 9V ~ 16V DC Respuesta en frecuencia 10Hz ~ 12KHz Crossover Low Pass 90Hz ~ 12KHz Crossover High Pass 10Hz ~ 90Hz Relación Señal / Ruido >90dB Sensibilidad de entrada 200mV
