Length (A) 7.83″ / (198.9mm) Width (B) 5.32″ / (135.1mm) Height (C) 2.46″ / (62.5mm)     General Specifications Rated Power @ 14.4 Volts 4 x 300 Watts @ 4Ω 4 x 400 Watts @ 2Ω 2 x 400 Watts @ 4Ω Bridged

Read more less

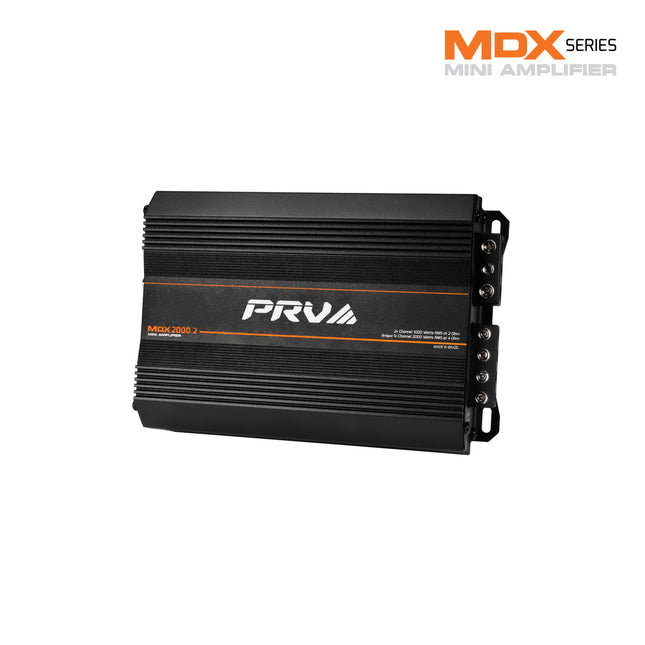

GENERAL SPECIFICATIONS Impedance 2 Ohm per Channel Channels 2 Channel Rated RMS Power at 14.0 V at 2 Ohm 2x 1000 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 2x 660 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 1x 2000 Watts RMS Average Efficiency 90% Operating Voltage 8 to 16 Volts Musical Current Draw 89 A Minimal Power Wire Input (OFC) 4 Gauge wires Built-in Crossover Fixed HPF & LPF at 80 Hz Minimal Speaker Wire Output 12 Gauge Frequency Response(-3dB) 10 – 22,000 Hz Min. Input Sensitivity for Max. Output 0.2 to 4v Signal Input RCA Cables Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Mini Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 8.50″ x 5.90″ x 2.60″ Weight 3.95 Lbs

Read more less

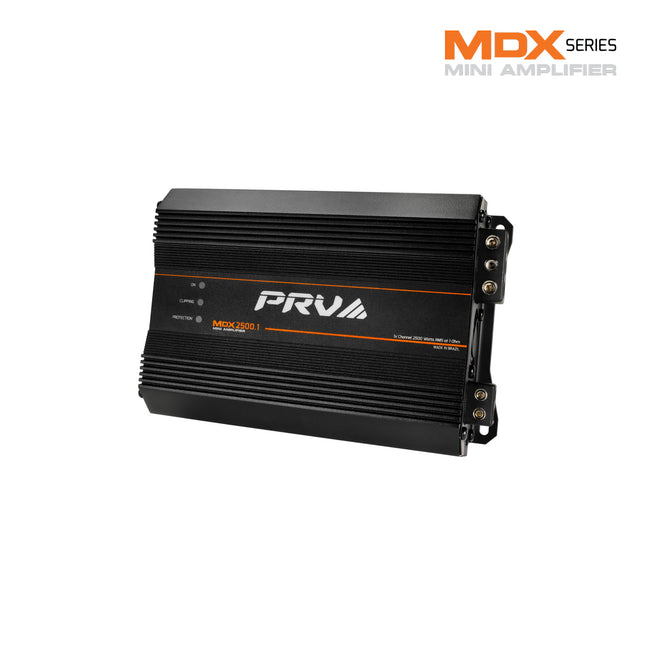

GENERAL SPECIFICATIONS Impedance 1 Ohm Channels 1 Channel Rated RMS Power at 14.0 V at 1 Ohm 1x 2600 Watts RMS Rated RMS Power at 14.0 V at 2 Ohm 1x 1850 Watts RMS Average Efficiency 84% Operating Voltage 8 to 16 Volts Musical Current Draw 149 A Minimal Power Wire Input (OFC) 4 Gauge wires Protection Fuse or Circuit Breaker 150 Amps Built-in Crossover Variable HPF 5Hz – 80Hz & LPF 50Hz – 1kHz Variable Gain Bass Boost at 50Hz 0 to +12dB Minimal Speaker Wire Output 12 Gauge

Read more less

GENERAL SPECIFICATIONS Impedance 2 Ohm Channels 4 Channel Rated RMS Power at 14.0 V at 2 Ohm 4x 310 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 4x 160 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 600 Watts RMS Average Efficiency 84% Operating Voltage 9 to 15 Volts Musical Current Draw 55 A Minimal Power Wire Input (OFC) 4 Gauge wires Built-in Crossover Fixed HPF & LPF at 90 Hz Minimal Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 24,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 2 Pair RCA Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 7.90″ x 8.42″ x 2.65″ Weight 4.50 Lbs

Read more less

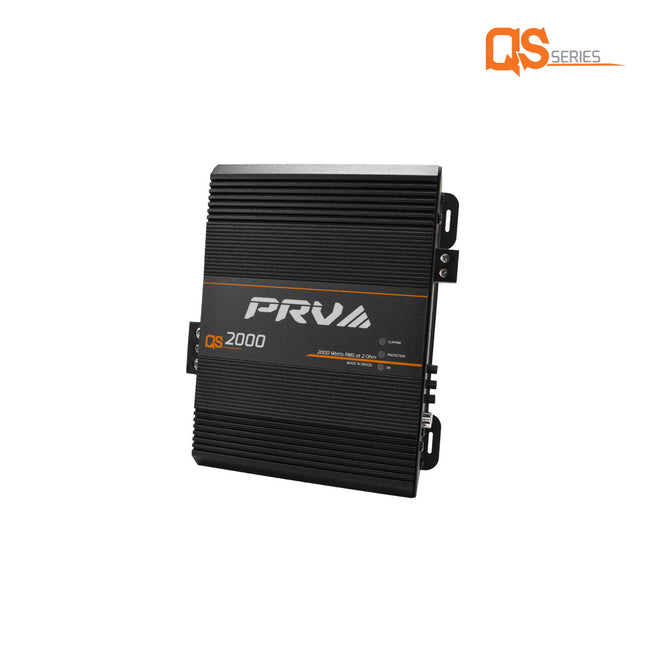

GENERAL SPECIFICATIONS Impedance 2 Ohm or 1 Ohm Channels 1 Channel Rated RMS Power at 14.0 V at 2 Ohm 2000 Watts Rated RMS Power at 14.0 V at 4 Ohms 1500 Watts Average Efficiency 81% Operating Voltage 9 to 16 Volts Musical Current Draw 105 A Minimum Power Wire Input (OFC) 4 Gauge Protection Fuse or Circuit Breaker 150 Amps Minimum Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 20,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 1 Pair RCA Signal to Noise >90 dB Protection System Low & High Supply Voltage / Shortage on Output / Low Impedance on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions (W x D x H) 7.40″ x 8.66″ x 3.00″ Weight 4.80 Lbs

Read more less

GENERAL SPECIFICATIONS Impedance 1 Ohm or 2 Ohm Channels 1 Channel Rated RMS Power at 14.0 V at 1 Ohm 3000 Watts Rated RMS Power at 14.0 V at 2 Ohms 2100 Watts Average Efficiency 76% Operating Voltage 9 to 16 Volts Musical Current Draw 155 A Minimum Power Wire Input (OFC) 4 Gauge Protection Fuse or Circuit Breaker 150 Amps Minimum Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 20,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 1 Pair RCA Signal to Noise >90 dB Protection System Low & High Supply Voltage / Shortage on Output / Low Impedance on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( W x D x H ) 7.30″ x 8.66″ x 3.00″ Weight 5.10 Lbs

Read more less

GENERAL SPECIFICATIONS Impedance 2 Ohm Channels 4 Channel Rated RMS Power at 14.0 V at 2 Ohm 4x 100 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 4x 70 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 200 Watts RMS Average Efficiency 80% Operating Voltage 9 to 15 Volts Musical Current Draw 45 A Minimal Power Wire Input (OFC) 8 Gauge wires Built-in Crossover Fixed HPF & LPF at 90 Hz Minimal Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 25,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 2 Pair RCA Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 4.00″ x 5.40″ x 2.00″ Weight 1.18 Lbs

Read more less

GENERAL SPECIFICATIONS Impedance 2 Ohm Channels 4 Channel Rated RMS Power at 14.0 V at 2 Ohm 4x 220 Watts RMS Rated RMS Power at 14.0 V at 4 Ohm 4x 140 Watts RMS Bridged Rated RMS Power at 14.0 V at 4 Ohm 2x 450 Watts RMS Average Efficiency 82% Operating Voltage 9 to 15 Volts Musical Current Draw 45 A Minimal Power Wire Input (OFC) 4 Gauge wires Built-in Crossover Fixed HPF & LPF at 90 Hz Minimal Speaker Wire Output 14 Gauge Frequency Response(-3dB) 20 – 25,000 Hz Min. Input Sensitivity for Max. Output 200 mV Signal Input 2 Pair RCA Signal to Noise >90 dB Protection System High Temperature / Short circuit on Output Heat Sink Type Heavy Duty Cast Aluminum Dimensions ( Width x Depth x Height ) 7.90″ x 8.00″ x 2.65″ Weight 3.80 Lbs

Read more less

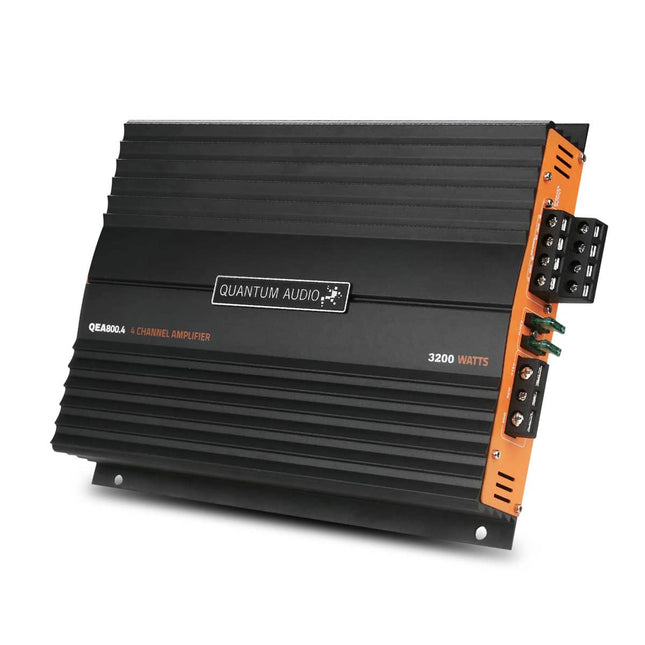

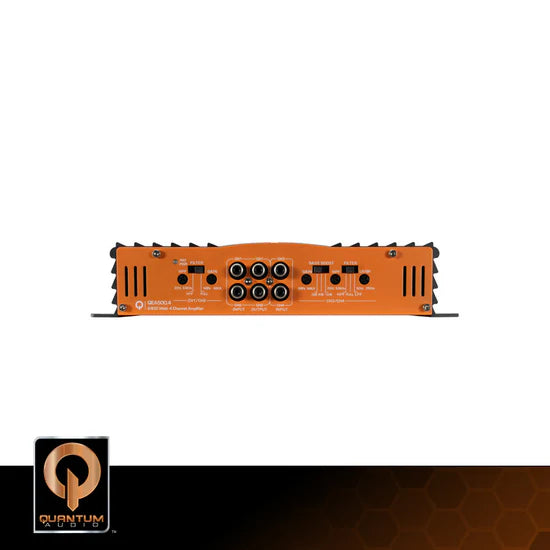

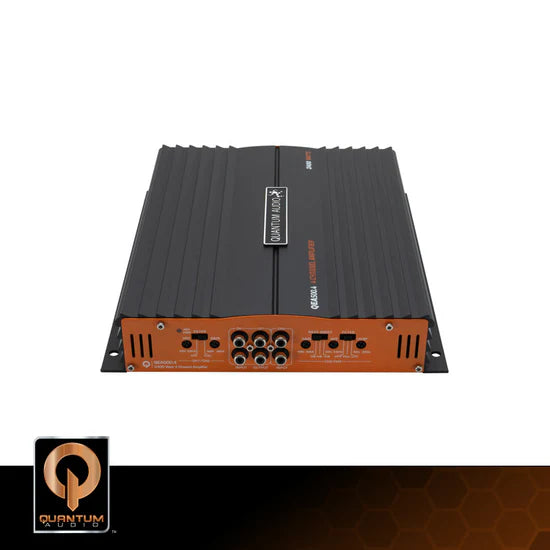

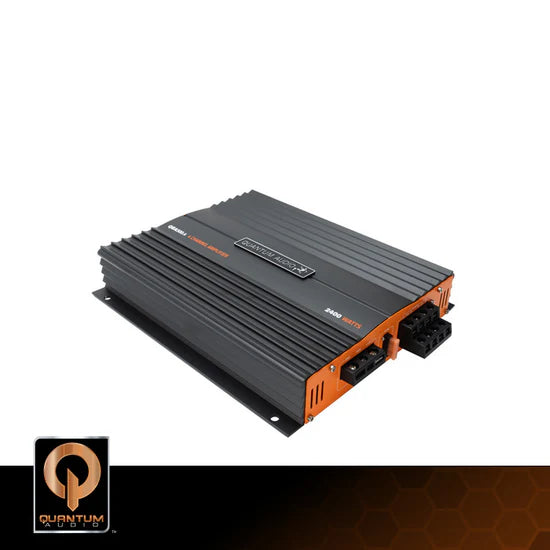

The Quantum QEA500.4, QEA800.4, QEA800.2 are equiped with a built in variable crossover network allowing you to select the crossover function and frequency for each the front channels or rear channels of the amplifier independently. Class A/B Circuitry 2 Ohm Load Stereo Capability Audiophile Grade Components Variable Low/ High Pass Crossover High Efficiency Mosfet Design QSINK Heat Management System

Read more less

The Quantum QEA500.4, QEA800.4, QEA800.2 are equiped with a built in variable crossover network allowing you to select the crossover function and frequency for each the front channels or rear channels of the amplifier independently. Class A/B Circuitry 2 Ohm Load Stereo Capability Audiophile Grade Components Variable Low/ High Pass Crossover High Efficiency Mosfet Design QSINK Heat Management System

Read more less

Funciones Circuitos de clase D de rango completo de 4 canales Capacidad de carga estéreo de 2 Ω  Entradas RCA de bajo nivel  Entradas de alto nivel Crossover seleccionable: HPF/LPF/Full Salidas puenteables @ 4Ω de carga Compatible con cualquier altavoz de 4/1Ω Diseño de mosfet de alta eficiencia Sistema de gestión del calor   Características técnicas 4 x 150 vatios @ 4 Ω estéreo 4 x 300 vatios @ 2 Ω estéreo 2 x 600 vatios @ 4 Ω puenteados Compatibilidad: 2 Ω estéreo THD y potencia nominal <0.5% Ancho de banda (-3 dB) - 18Hz- 22KHz Factor de amortiguación (1k Hz @ 4Ω) - 100 Relación señal/ruido >90dB Sensibilidad de entrada: 285Mv - 6V Pendiente del filtro cruzado en estéreo - 12dB Canal 1-2 Rango de filtros HP - 40Hz - 3KHz Rango de filtro LP canal 1-2 - 40Hz - 3KHz Canal 3-4 Gama de filtros HP - 40Hz - 3KHz Rango de filtro de canal 3-4LP - 40Hz - 3KHz Dimensiones L-6,05 pulgadas (153,7 mm) H-2,33 pulgadas (59,2 mm) W- 5,53 pulgadas (140,5 mm)
