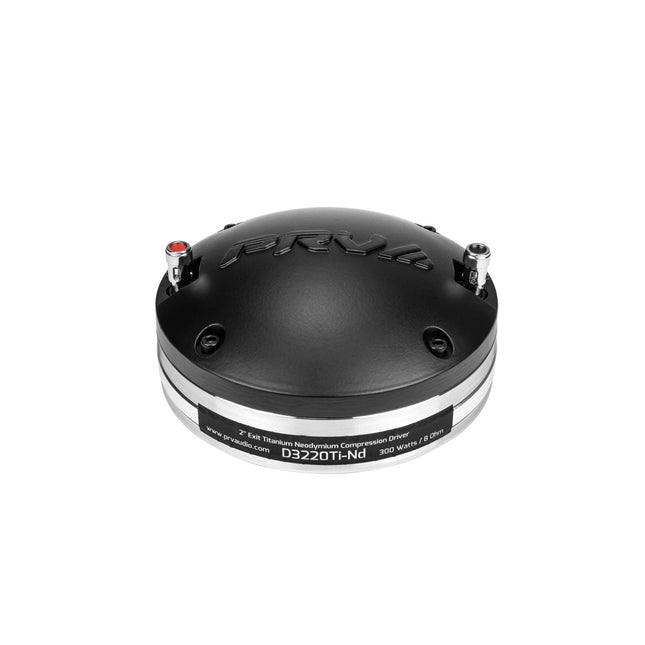

GENERAL SPECIFICATIONS Exit Throat Diameter 2” (50 mm) Nominal impedance 8 Ohm Nominal Power Handling* 150 Watts Continuous Program Power(RMS)** 300 Watts Max Peak Power*** 600 Watts Sensitivity 2.83V at 1m 110 dB Recommended Hi Pass CrossoverFor Full Power Handling 1400 Hz12db/oct Crossover Frequency Response at -10dB 1,200 – 19,000 Hz Voice Coil Diameter 3” (76.2 mm) Voice Coil Wire CCAW Voice Coil Former Material Kapton Diaphragm Material Titanium Flux Density 1.80 T Magnet Material Neodymium

Read more less

GENERAL SPECIFICATIONS Exit Throat Diameter 2” (50 mm) Nominal impedance 8 Ohm Nominal Power Handling* 150 Watts Continuous Program Power(RMS)** 300 Watts Max Peak Power*** 600 Watts Sensitivity 2.83V at 1m 109 dB Recommended Hi Pass CrossoverFor Full Power Handling 800 Hz12db/oct Crossover Frequency Response at -10dB 600 – 7,500 Hz Voice Coil Diameter 3” (76.2 mm) Voice Coil Wire Copper Voice Coil Former Material Kapton Diaphragm Material Phenolic Flux Density 1.80 T Magnet Material Neodymium

Read more less

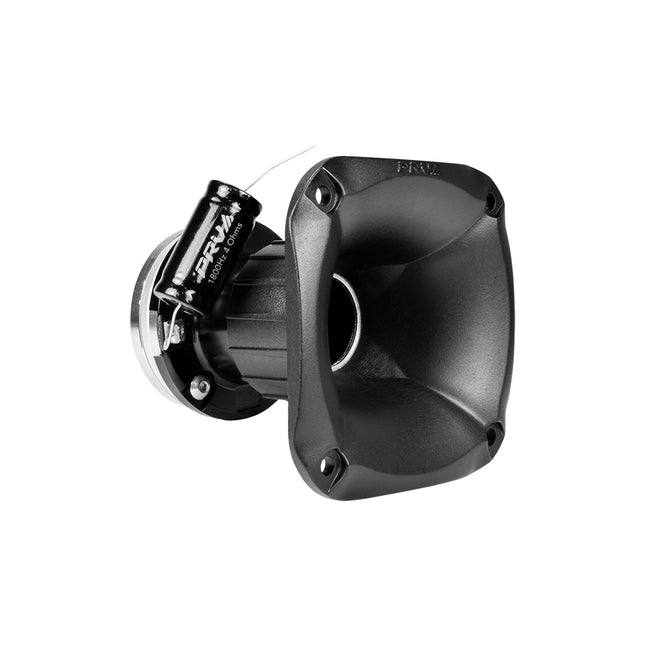

GENERAL SPECIFICATIONS Exit Throat Diameter 1” (25.4mm) Nominal impedance 4 Ohm Nominal Power Handling* 75 Watts Continuous Program Power(RMS)** 150 Watts Max Peak Power*** 300 Watts Sensitivity 2.00V at 1m 107 dB Recommended Hi Pass Crossover For Full Power Handling 1800 Hz 12db/oct Crossover Frequency Response at -10dB 1,600 – 20,000 Hz Voice Coil Diameter 1” (25.4mm) Voice Coil Wire CCAW Voice Coil Former Material Kapton Diaphragm Material Polyimide Flux Density 2.25 T Magnet Material Neodymium

Read more less

GENERAL SPECIFICATIONS Exit Throat Diameter 1” (25.4mm) Nominal impedance 8 Ohms Nominal Power Handling 75 Watts Continuous Program Power (RMS) 150Watts Peak Power 300 Watts Sensitivity 2.83V at 1m 108 dB Recommended Hi Pass Crossover** **For Full Power Handling 3000 Hz** **12db Per Octave Crossover Frequency Response at -10dB 1,300 – 16,000 Hz Voice Coil Diameter 1″ (25.4 mm) Voice Coil Wire CCAW Voice Coil Former Material Kapton Diaphragm Material Phenolic Resin Flux Density 1.02 T Magnet Material Ferrite

Read more less

220 Watts Power (P.M.P.O.) 110 Watts Power (R.M.S.) Frequency Response: 500-18000 Hz Sensitivity: 108 dB Resin Film Diaphragm 3" Kapton Voice Coil with Flat Wire Neodymium Magnet

Read more less

SUPERIOR PERFORMANCE: Our 220 Watts Titanium Compression Driver utilizes cutting-edge technology for strong power handling and superior performance. With its high power and smooth response, this driver is perfect for all audio users. HIGH-QUALITY VOICE COIL: This driver is equipped with a high-quality 3” high-temperature Kapton voice coil designed to handle extreme heat while maintaining its structural integrity, ensuring a long lifespan for your driver. TITANIUM DIAPHRAGM: Utilizing a high-performance titanium diaphragm, this driver offers superior sound quality and long-lasting durability, making it an ideal choice for professional audio applications. FLAT ALUMINUM WIRES: Engineered to use flat aluminum wires, this driver provides easy installation, excellent overheat protection and reliable durability while maintaining optimal sound quality. BOLT-ON CONNECTION: This driver features a universal bolt-on connection, making it easier to connect with other horns.  MAGNET: This driver is equipped with a neodymium magnet, delivering powerful and superior sound. PEAK POWER: 250 WATTS (P.M.P.O.) CONTINUOUS POWER: 125 WATTS (R.M.S) FREQUENCY RESPONSE: 500-1,8000 Hz SENSITIVITY: 108 dB THROAT DIAMETER: 2”

Read more less

Specs:450 Watts Max Power150 Watts RMS PowerImpedance: 8 OhmSensitivity: 109 dBFrequency Response: 1,000 – 20,000HzVoice Coil: 2”Titanium Diaphragm with a 2″ voice coilRecommended High Pass Filter:1600 Hz under 225 Watts of Amplifier RMS Power with 18dB Slope1500 Hz under 150 Watts of Amplifier RMS Power with 12dB SlopeSizing:Mounting Depth: 5.08”Mounting Cutout Diameter: 5.75″Overall Size: 6.15″ x 6.15″ x 5.39”Weight: 7.20 Lbs
