GENERAL SPECIFICATIONS Number of processors (DSPs) 1 Input Channels 2 Output Channels 4 Output Gain Yes Master Level 0 ~ 100% Graphic Equalizer 15 Band Graphic Equalizer Presets 12 Parametric Equalizer Input 1 Parametric Equalizer Output 4 / 1 per Channel Routing A,B / A+B Crossover Butterworth (dB/8ª) 12/18/24/36/48 Crossover Linkwitz-Riley (dB/8ª) 12/18/24/36/48 Limiter Yes Automatic Attack/Release Yes Delay 0 to 8 ms (275 cm) Frequency Generator 10Hz – 22kHz, Level -60 at 0dB Frequency Scan 10Hz – 22kHz / Level -60 at 0dB / Control of speed Display LCD16x2 Characters Screen Saver Text Security Password Yes Frequency Response(+/-3dB) 10Hz @ 22.5kHz @ -1dB Latency 1.08ms Signal to Noise >90dB THD <0,01% Channel Separation > 80 dB Maximum Input Voltage 5,6 Vpp (+8,2 dBu) Maximum Output Voltage 5,6 Vpp (+8,2 dBu) Supply Voltage 9V to 16V DC Dimensions (HxWxL) 1.45″ x 7.87″ x 3.97″ Weight 1 Lbs

Read more less

Technical Specifications: Inputs MAIN IN ( RCA) and HI-INPUT ( Speaker Wire) Outputs SUB OUT / FRONT and REAR Audio Controls INPUT LEVEL / FADER / 7 BAND EQ +/- 12 dB Level Bass Knobs SUB LEVEL / LPF FREQUENCY 60Hz to 90Hz Frequency Response 5 Hz to 140kHz Working Voltage 9v to 16v DC Dimensions 7.25” x 1” x 2.25” Mounting Depth

Read more less

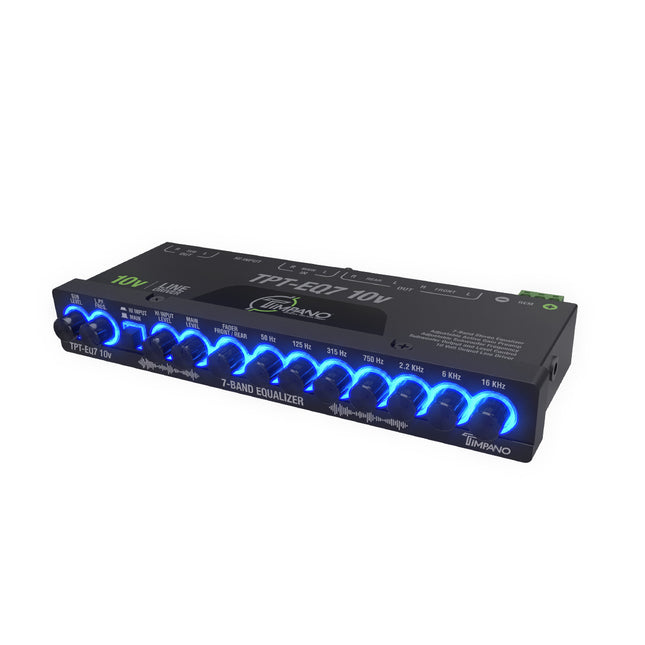

Technical information Número de canais de entrada 2 stereo Número de canais de saída 3 stereo Ajuste de ganho geral Main: -13 a +8 dBAux: -13 a +8 dB Output impedance 100 Ohms Maximum output level 28.28Vpp (10 VRMS) Resposta de frequência (-1dB) 6Hz ~ 55KHz Total Harmonic Distortion 0,01% Relação Sinal / Ruído >100 dB Crosstalk (separation between channels) >80dB / 1 KHz Equalizador gráfico, 7 bandas Frequencies: 50, 125, 315, 750, 2.2K, 6K, 12KHz Power Supply Voltage 9 ~ 15 VDC Consumo nominal (12,6V) (14,4): 0.270 A Dimensões(LxAxP) 185x31x138mm (7.28"x1.22"x5.43")

Read more less

Number of bands 7 Band Equalizer (-12 dB to +12 dB) Adjustable Bands 50Hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz, 16kHz Eq Adjustment -12dB to +12dB Frequency Response 10Hz to 50kHz Maximum Output Voltage 15 Volts THD / S/N ratio 0.005% / 100dB Stereo Separation 82dB/ 1kHz Headroom 20dB Operating Voltage 11 to 15 volts Input Sensitivity 50mV to 3V Overall Size 7.22″ wide x 5″ deep x 1″ height Mounting Cutout 7″ wide by 1″ height Included in the Box: 1/2-DIN Graphic EQ – EQ7-15 3-Pin Plug for Power/Ground/ Remote Wire 2 Brackets 4 Machine screws 2 Self-tapping screws Owner’s Manual/Installation Manual

Read more less

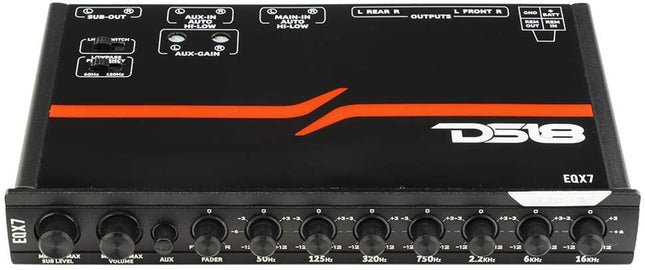

7-band parametric equalizer with built in subwoofer x-over Seven Parametric Equalization Bands (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6KHz and 16kHz) Variable Subwoofer Output with Built-in 18dB per Octave selectable at 60Hz or 90Hz Three stereo RCA outputs: front, rear, and subwoofer Volume Gain with up to 8 Volts of Output Auxiliary stereo RCA input on rear as well as a MP3 input on the front panel Variable subwoofer output control Master volume RCA configuration Illuminated Controls
